Large character Inkjet

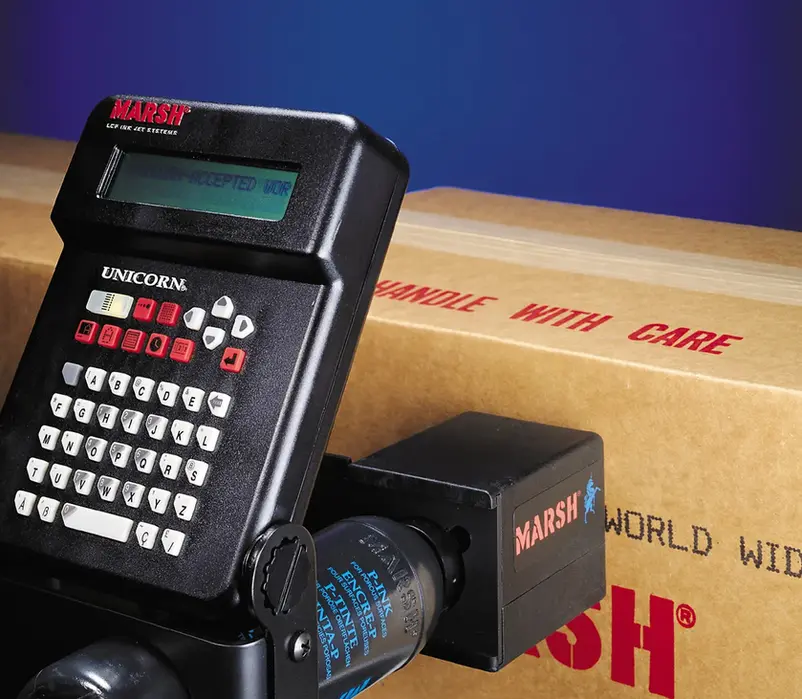

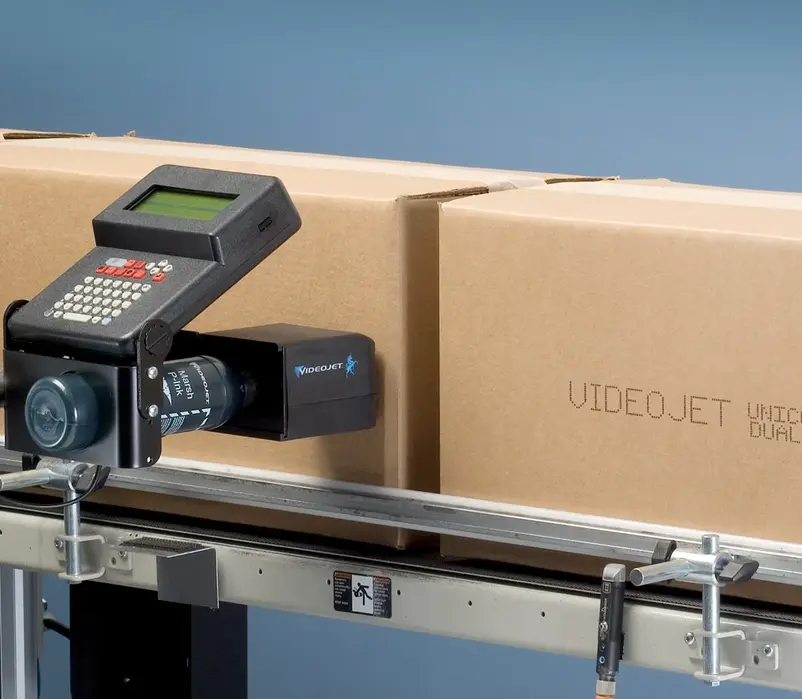

Unicorn and Unicorn II InkJet Printer

  • Large character marking (LCM) system


    Large Character Printing



    The Unicorn large character inkjet printing product family is a compact complete solution for single and dual line case coding. It is designed for customers who value quick set-up without technical intervention. One box contains everything needed to start printing today.

  • Compact, self-contained design makes coding easy:


    • Quick and simple integration; out of the box and on the job in minutes

    • Includes a standalone bracket minimizing hardware integration needs

    • Built-in photocells detect production direction and speed for simple integration

    • Menu-driven controller to create and edit messages


    Unicorn offers the most economical case coding solution:


    • Low acquisition cost to deliver on-demand case coding to nearly all simple applications

    • Low consumable cost keeps per item coding cost low for profitable operations

    • Optional bulk ink supply further reduces consumable costs and extends time between ink reloads for more efficient operation


    Rich features enable broad application coverage:

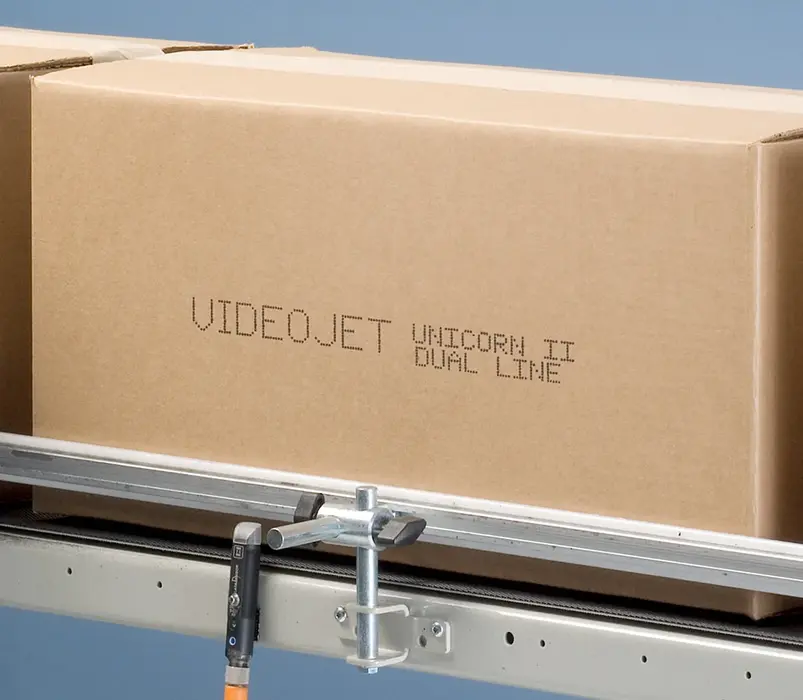

    • Choice of single (Unicorn) and single/dual line (Unicorn II) coding

    • Customized time, date and count codes including best before/best by date which automatically update for minimal operator interaction

    • Universal voltage and built-in language selection for global use

    • Stores messages in the controller for instant recall to reduce time to complete line change over


  • Specifications
    Value
    Display (User Interface)
    SIMPLICiTY™ based 10 inch color touchscreen
    Positive Air / CleanFlow™
    Optional
    Linear and 2D Bar Codes
    Included
    Communications
    Ethernet LAN™; Built-in Wi-Fi; optional Cellular connectivity
    USB
    Included
    Plug and Play Printhead Modules
    Included
    Smart Cartridge™
    Included
    Message Storage Capability
    More than 250 complex messages
    Umbilical Length
    3 m (9.8 ft) optional 6 m (19.6 ft)
    Environmental Protection
    IP55 (Dust Kit IP65 #)
    Maximum Line Speed (1)
    278 m/min (914 ft/min)
    Maximum Lines of Print per Printhead
    5
    Inks
    Dye Based
    Printheads
    1
