Thermal Inkjet Printer

Wolke m610® touch Thermal Inkjet Printer

  • Thermal InkJet Marking System & Barcode label printer



    The Wolke m610 touch thermal inkjet (TIJ) printers are high resolution printers that use HP® technology. These versatile printers feature a large CLARiTY™ touchscreen interface for easy operation, as well as provide a common look and feel to those familiar with Videojet’s CLARiTY-based printers. From basic alphanumeric codes to complex bar codes and graphics, the m610 touch have the capability to print a wide range of codes on fast production lines.

  • Simple operation allows you to focus on production, not the printer:


    • The 8.4 inch color touchscreen interface with easy to learn, icon based, controls

    • Clean operation with genuine HP cartridges, virtually eliminating spills and mess

    • Simple code selection and customer selectable rules prevent human error; all common functions accessed in five or fewer touches


    Uptime Advantage saves money:


    • No wear items or replacement parts outside of inkjet cartridge replacement

    • Simple cartridge changes can occur in less than one minute, with no specialized training


    High speed, high resolution printing:


    • Print 600 x 600 dpi high resolution codes up to 50.8 mm (2 in) in height

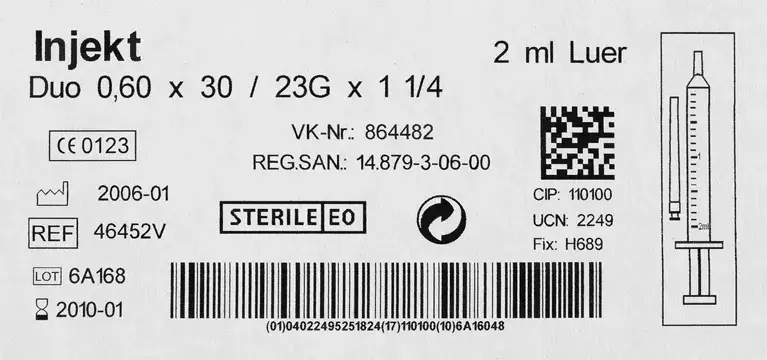

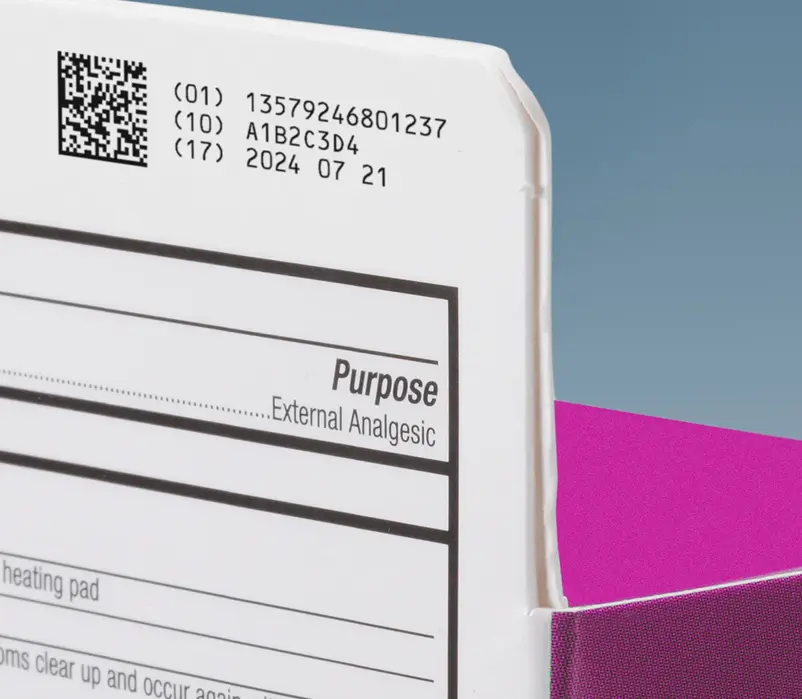

    • Wide range of bar codes including DataMatrix and stacked symbologies

    • Maximum line speed of up to 75 m/min (250 ft/min) when printing at exceptional print quality of 600 x 240 dpi (faster speeds available at lower print speeds)


    Ideal for packaging line integration; scalable for your operations:


    • The small footprint and industrial design is easy to integrate into existing production lines

    • Integrate printer via webserver functionality for remote control from third party HMI displays

    • Data interfaces include TCP/IP, RS232, USB, ZPL and Text communication

    • Advanced communication protocol for remote operation and high speed serialization. Printer supports both Text and Binary communication and offers select emulation of ZPL (Zebra Programming Language)

  • Specifications
    Value
    Display (User Interface)
    SIMPLICiTY™ based 10 inch color touchscreen
    Positive Air / CleanFlow™
    Optional
    Linear and 2D Bar Codes
    Included
    Communications
    Ethernet LAN™; Built-in Wi-Fi; optional Cellular connectivity
    USB
    Included
    Plug and Play Printhead Modules
    Included
    Smart Cartridge™
    Included
    Message Storage Capability
    More than 250 complex messages
    Umbilical Length
    3 m (9.8 ft) optional 6 m (19.6 ft)
    Environmental Protection
    IP55 (Dust Kit IP65 #)
    Maximum Line Speed (1)
    278 m/min (914 ft/min)
    Maximum Lines of Print per Printhead
    5
    Inks
    Dye Based
    Printheads
    1
    Download Full Spec Sheet
