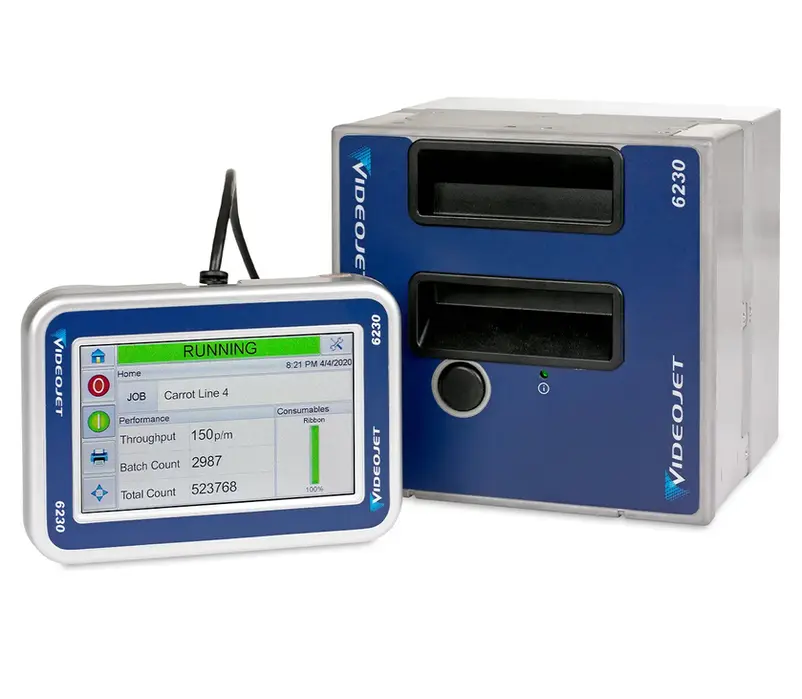

Videojet® 6230 Thermal Transfer Printer
Thermal Transfer Printer for Flexible Packaging Materials
The Videojet 6230 is a low speed Thermal Transfer Printer that utilizes the latest technology to help reduce flexible packaging coding errors, and improve total cost of ownership (TCO) through a proven and cost-effective solution.
The 6230 Thermal Transfer Printer delivers easy usability with an intuitive tablet-like 5’’ touchscreen controller with CLARiTY™ interface. The simple ribbon path helps to ensure fast changeovers and a more efficient operation.
Code assurance comes as standard in the 6230 Thermal Transfer Printer when using templates created by CLARiSOFT™ or VideojetConnect Design software. These simple code creation tools help reduce operator interactions resulting in fewer user errors and unnecessary product waste and rework.
In addition to the features available, the 6230 offers high-quality codes up to speeds of 150 ppm and is an ideal solution for users migrating to a digital solution from analog equipment like hot stamp and roller coders.
Simple usability
Simple change ribbon cassette, with pushbutton lock mechanism, allows for fast and easy ribbon replacement
Intuitive tablet-like 5” touchscreen controller with CLARiTY™ interface used on other Videojet printers used in other Videojet technologies
Fits your unique production needs
Airless operation removes the need for plant air
Offers high-quality codes up to speeds of 150 packs / minute
Single design printhead for intermittent or continuous printing
Compact design easily integrates into most production lines
Built-in productivity
Precise ribbon control with bidirectional stepper motors minimizes gaps between codes and reduces ribbon wastage
700m maximum ribbon length requires fewer ribbon changes versus hot stamp or other competitive TTO systems
Simple ribbon path that ensures fast changeovers and a more efficient operation
Code Assurance
WYSIWYG print preview allows operators to confirm the correct code is selected
Built-in code assurance software helps to reduce operator-induced errors, decreasing unnecessary product waste and rework
Real-time clock stamp avoids date errors
Benefit from simple code creation with VideojetConnect™ Design or CLARiSOFT™ software
- SpecificationsValueDisplay (User Interface)SIMPLICiTY™ based 10 inch color touchscreenPositive Air / CleanFlow™OptionalLinear and 2D Bar CodesIncludedCommunicationsEthernet LAN™; Built-in Wi-Fi; optional Cellular connectivityUSBIncludedPlug and Play Printhead ModulesIncludedSmart Cartridge™IncludedMessage Storage CapabilityMore than 250 complex messagesUmbilical Length3 m (9.8 ft) optional 6 m (19.6 ft)Environmental ProtectionIP55 (Dust Kit IP65 #)Maximum Line Speed (1)278 m/min (914 ft/min)Maximum Lines of Print per Printhead5InksDye BasedPrintheads1
